MAUI Trading App with SQLite and Charts

MAUI Trading App. Modern desktop trading applications require three things:

fast UI rendering
local persistent storage
responsive charts and real-time updates

Many developers immediately jump into:

WPF
Electron
React + Tauri
Avalonia

But for smaller trading dashboards and cross-platform financial tools, .NET MAUI is a surprisingly strong option.

We built a desktop stock application that:

stores market data in SQLite
renders charts
displays financial information
uses modern dark UI
works as a desktop trading dashboard foundation

This article explains the architecture step by step.

Why SQLite for Desktop Financial Apps?

For desktop trading software, SQLite is often a better choice than SQL Server.

Why?

Because:

zero configuration
embedded database
no server installation
fast reads
portable single-file database

For local dashboards, watchlists, indicators, and chart caching, SQLite is ideal.

Typical architecture:

Market API
    ↓
Background Service
    ↓
SQLite
    ↓
Chart Renderer
    ↓
Desktop UI

MAUI Trading App. Application Architecture

The application uses a layered structure.

MauiStockApp1
│
├── Models
├── Services
├── Views
├── Database
├── Charts
└── Platforms

This separation matters.

Most small MAUI apps become a disaster because developers put:

database logic
UI
chart rendering
API calls

inside MainPage.xaml.cs.

That scales horribly.

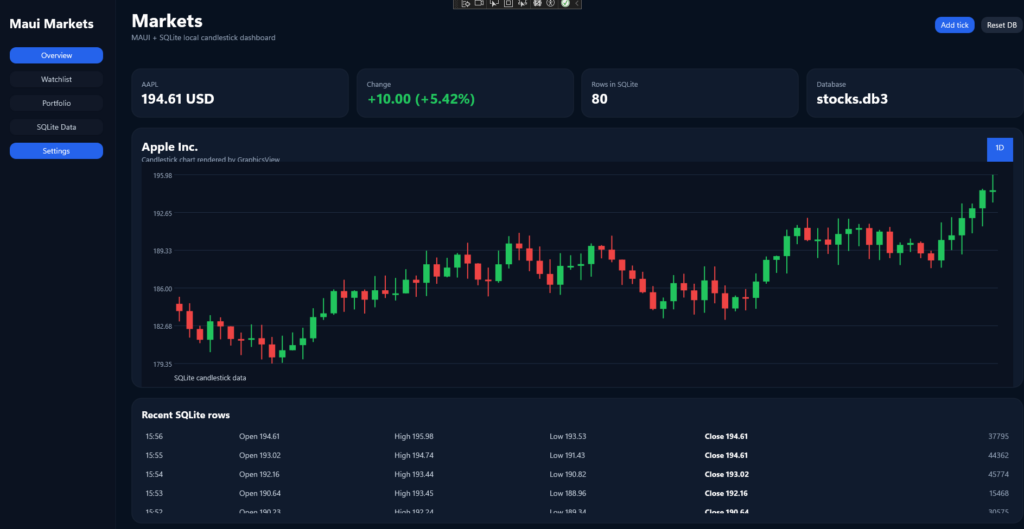

MAUI Trading App. Main UI Structure

The dashboard uses a desktop trading layout:

┌────────────────────────────────────────────┐
│ Toolbar                                    │
├──────────────┬─────────────────────────────┤
│ Watchlist    │ Candlestick Chart           │
│              │                             │
│ Symbols      │ Indicators                  │
│              │                             │
├──────────────┴─────────────────────────────┤
│ Market Statistics                          │
└────────────────────────────────────────────┘

This is much better than fake MDI windows.

A common mistake is trying to recreate WinForms inside MAUI.

That usually becomes technical debt immediately.

SQLite Setup

Install package:

BAT (Batchfile)

dotnet add package sqlite-net-pcl

dotnet add package sqlite-net-pcl

Database service:

using SQLite;

public class StockDatabase
{
    private SQLiteAsyncConnection _database;

    public async Task Init()
    {
        if (_database != null)
            return;

        var path = Path.Combine(
            FileSystem.AppDataDirectory,
            "stocks.db");

        _database = new SQLiteAsyncConnection(path);

        await _database.CreateTableAsync<StockPrice>();
    }

    public Task<List<StockPrice>> GetPrices()
    {
        return _database.Table<StockPrice>()
            .OrderBy(x => x.Time)
            .ToListAsync();
    }

    public Task<int> Insert(StockPrice price)
    {
        return _database.InsertAsync(price);
    }
}

using SQLite;

public class StockDatabase
{
    private SQLiteAsyncConnection _database;

    public async Task Init()
    {
        if (_database != null)
            return;

        var path = Path.Combine(
            FileSystem.AppDataDirectory,
            "stocks.db");

        _database = new SQLiteAsyncConnection(path);

        await _database.CreateTableAsync<StockPrice>();
    }

    public Task<List<StockPrice>> GetPrices()
    {
        return _database.Table<StockPrice>()
            .OrderBy(x => x.Time)
            .ToListAsync();
    }

    public Task<int> Insert(StockPrice price)
    {
        return _database.InsertAsync(price);
    }
}

Stock Model

public class StockPrice
{
    [PrimaryKey, AutoIncrement]
    public int Id { get; set; }

    public string Symbol { get; set; }

    public decimal Price { get; set; }

    public DateTime Time { get; set; }
}

public class StockPrice
{
    [PrimaryKey, AutoIncrement]
    public int Id { get; set; }

    public string Symbol { get; set; }

    public decimal Price { get; set; }

    public DateTime Time { get; set; }
}

Simple.

Good.

Enough.

Most developers overengineer financial models immediately.

Registering Services in MAUI

MauiProgram.cs

builder.Services.AddSingleton<StockDatabase>();
builder.Services.AddSingleton<MainPage>();

builder.Services.AddSingleton<StockDatabase>();
builder.Services.AddSingleton<MainPage>();

This allows dependency injection.

Without DI, large MAUI apps become impossible to maintain.

Loading Data

MainPage.xaml.cs

public partial class MainPage : ContentPage
{
    private readonly StockDatabase _database;

    public MainPage(StockDatabase database)
    {
        InitializeComponent();

        _database = database;

        LoadData();
    }

    private async Task LoadData()
    {
        await _database.Init();

        var prices = await _database.GetPrices();

        chartView.ItemsSource = prices;
    }
}

public partial class MainPage : ContentPage
{
    private readonly StockDatabase _database;

    public MainPage(StockDatabase database)
    {
        InitializeComponent();

        _database = database;

        LoadData();
    }

    private async Task LoadData()
    {
        await _database.Init();

        var prices = await _database.GetPrices();

        chartView.ItemsSource = prices;
    }
}

MAUI Trading App. Creating Charts in MAUI

There are multiple approaches.

Option 1 — GraphicsView (recommended)

Best for:

custom rendering
trading dashboards
candlestick charts
lightweight rendering

Option 2 — Syncfusion

Good but heavy.

Option 3 — LiveCharts

Works but often breaks between MAUI versions.

For trading software, custom rendering is usually the best choice.

Custom Chart Renderer

public class StockChartDrawable : IDrawable
{
    public List<StockPrice> Prices { get; set; } = new();

    public void Draw(ICanvas canvas, RectF dirtyRect)
    {
        canvas.StrokeColor = Colors.Lime;
        canvas.StrokeSize = 2;

        if (Prices.Count < 2)
            return;

        float stepX = dirtyRect.Width / Prices.Count;

        decimal max = Prices.Max(x => x.Price);
        decimal min = Prices.Min(x => x.Price);

        for (int i = 1; i < Prices.Count; i++)
        {
            float x1 = (i - 1) * stepX;
            float x2 = i * stepX;

            float y1 = dirtyRect.Height -
                ((float)(Prices[i - 1].Price - min)
                / (float)(max - min))
                * dirtyRect.Height;

            float y2 = dirtyRect.Height -
                ((float)(Prices[i].Price - min)
                / (float)(max - min))
                * dirtyRect.Height;

            canvas.DrawLine(x1, y1, x2, y2);
        }
    }
}

public class StockChartDrawable : IDrawable
{
    public List<StockPrice> Prices { get; set; } = new();

    public void Draw(ICanvas canvas, RectF dirtyRect)
    {
        canvas.StrokeColor = Colors.Lime;
        canvas.StrokeSize = 2;

        if (Prices.Count < 2)
            return;

        float stepX = dirtyRect.Width / Prices.Count;

        decimal max = Prices.Max(x => x.Price);
        decimal min = Prices.Min(x => x.Price);

        for (int i = 1; i < Prices.Count; i++)
        {
            float x1 = (i - 1) * stepX;
            float x2 = i * stepX;

            float y1 = dirtyRect.Height -
                ((float)(Prices[i - 1].Price - min)
                / (float)(max - min))
                * dirtyRect.Height;

            float y2 = dirtyRect.Height -
                ((float)(Prices[i].Price - min)
                / (float)(max - min))
                * dirtyRect.Height;

            canvas.DrawLine(x1, y1, x2, y2);
        }
    }
}

GraphicsView

XAML:

XML

<GraphicsView
    x:Name="ChartView"
    HeightRequest="400" />

<GraphicsView
    x:Name="ChartView"
    HeightRequest="400" />

Code:

XML

var drawable = new StockChartDrawable
{
    Prices = prices
};

ChartView.Drawable = drawable;

ChartView.Invalidate();

var drawable = new StockChartDrawable
{
    Prices = prices
};

ChartView.Drawable = drawable;

ChartView.Invalidate();

Dark Trading UI

Financial applications look terrible if spacing and contrast are wrong.

Recommended colors:

Background: #101014
Card:       #1B1B22
Green:      #00C853
Red:        #FF5252
Text:       #F5F5F5

Avoid:

pure black
neon everywhere
giant gradients
rounded corners on everything

Most fake “modern fintech UI” looks childish.

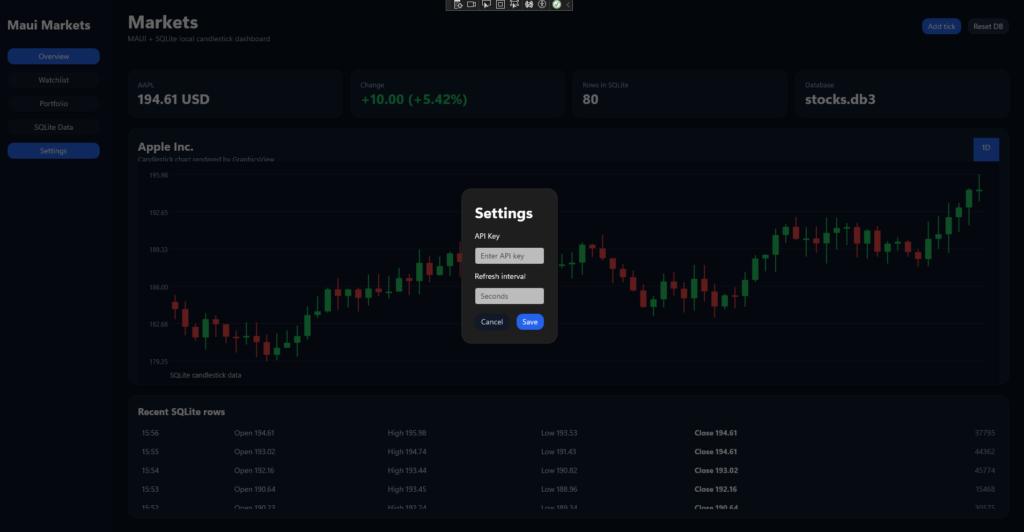

Modal Settings Panel

Instead of WinForms dialogs:

XML

ShowDialog()

ShowDialog()

use overlay panels.

Example:

XML

<Grid x:Name="SettingsOverlay"
      IsVisible="False"
      BackgroundColor="#99000000">

    <Border
        MaximumWidthRequest="600"
        HorizontalOptions="Center"
        VerticalOptions="Center">

        <!-- settings -->

    </Border>

</Grid>

<Grid x:Name="SettingsOverlay"
      IsVisible="False"
      BackgroundColor="#99000000">

    <Border
        MaximumWidthRequest="600"
        HorizontalOptions="Center"
        VerticalOptions="Center">

        <!-- settings -->

    </Border>

</Grid>

This is cleaner and works much better in MAUI.

Maximizing Window on Startup

MAUI desktop apps often start tiny.

Use:

XML

protected override Window CreateWindow(IActivationState? state)
{
    var window = new Window(new AppShell());

#if WINDOWS
    window.Created += (s, e) =>
    {
        var nativeWindow =
            window.Handler.PlatformView
            as Microsoft.UI.Xaml.Window;

        IntPtr hWnd =
            WinRT.Interop.WindowNative
                .GetWindowHandle(nativeWindow);

        var windowId =
            Microsoft.UI.Win32Interop
                .GetWindowIdFromWindow(hWnd);

        var appWindow =
            Microsoft.UI.Windowing.AppWindow
                .GetFromWindowId(windowId);

        appWindow.SetPresenter(
            Microsoft.UI.Windowing
                .AppWindowPresenterKind
                .Overlapped);

        if (appWindow.Presenter is
            Microsoft.UI.Windowing
                .OverlappedPresenter presenter)
        {
            presenter.Maximize();
        }
    };
#endif

    return window;
}

protected override Window CreateWindow(IActivationState? state)
{
    var window = new Window(new AppShell());

#if WINDOWS
    window.Created += (s, e) =>
    {
        var nativeWindow =
            window.Handler.PlatformView
            as Microsoft.UI.Xaml.Window;

        IntPtr hWnd =
            WinRT.Interop.WindowNative
                .GetWindowHandle(nativeWindow);

        var windowId =
            Microsoft.UI.Win32Interop
                .GetWindowIdFromWindow(hWnd);

        var appWindow =
            Microsoft.UI.Windowing.AppWindow
                .GetFromWindowId(windowId);

        appWindow.SetPresenter(
            Microsoft.UI.Windowing
                .AppWindowPresenterKind
                .Overlapped);

        if (appWindow.Presenter is
            Microsoft.UI.Windowing
                .OverlappedPresenter presenter)
        {
            presenter.Maximize();
        }
    };
#endif

    return window;
}

Why MAUI Is Not Perfect

Brutal truth:

MAUI is still unstable for advanced desktop software.

Problems:

Windows App SDK issues
broken manifests
workload version conflicts
chart libraries breaking
platform inconsistencies

But for:

dashboards
internal enterprise tools
monitoring apps
financial visualizations
trading panels

it is already usable.

When NOT to Use MAUI

Do not use MAUI for:

Bloomberg Terminal clones
SCADA with 40 floating windows
CAD software
heavy desktop tooling
Visual Studio style UI

Use:

WPF
Avalonia
Qt

instead.

Future Improvements

This project can easily evolve into:

live market feeds
WebSocket streaming
candlestick charts
RSI/MACD indicators
watchlists
portfolio management
alerts
paper trading
AI analysis

Architecture already supports that direction.

Conclusion

MAUI Trading App. This MAUI stock dashboard project demonstrates something important:

You do not need:

Electron
Chromium
massive frontend stacks

to build modern desktop financial applications.

A lightweight MAUI + SQLite architecture can already deliver:

fast startup
native desktop experience
local persistence
modern UI
scalable architecture

Source

https://github.com/rafalkukuczka/MauiStockApp1
